Intelligent RFID Wifi Entry System Doorking Video Intercom In Apartment

Shenzhen Wellcam Co., Ltd.
Contact Now

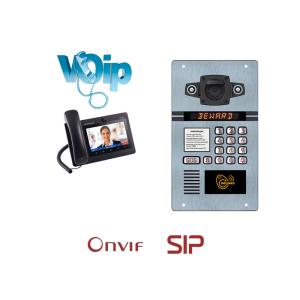

Intelligent RFID Wifi Entry System Doorking Video Intercom In Apartment

Brand Name : Beward

Model Number : DKS15102

Certification : CE,RoHS

Place of Origin : China

MOQ : 1 pc for sample;After tested sample,the MOQ is 5pcs/model

Price : Negotiable

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 10000/month

Delivery Time : About 3-7 working day for sample;7-15 working day for normal order

Packaging Details : Neutral packing

Name : Buliding video door phone

Resolution : 1.3MP

Compression format : H.264 BP / MP, Motion JPEG

Audio output : Built-in speaker

Audio input : Built-in microphone

Compression : G.711 (a-law, u-law), G.726

ONVIF : Compatible with third NVR software

SIP : SIP 2.0,compatible with sip pbx

Contact Now

Intelligent RFID Wifi Entry System Doorking Video Intercom In Apartment

Beward RFID Professional IP SIP Multi Apartment Building Video Intercom Doorbell

Beward DKS15102 is designed to organize access control to the entrance of an apartment building.To transmit high-quality video in the IP intercom,a 1.3 Mpix camera is used.Duplex audio and video are transmitted using SIP.The presence of an RFID reader Mifare ID allows you to organize access to the entrance using wireless tags.For video transmission in complete darkness,a built-in IR illumination with a lighting range of up to 10 m is provided.The metal anti-vandal body of the intercom will not allow intruders to disable it.Due to the temperature range from -50 to + 60 ° C,the intercom can be operated at any time of the year.Support for a four-digit subscriber number,up to 1000,allows you to use the IP intercom Beward DKS15102 in hotels or in high-rise buildings.

Features:

1. Intelligent echo cancellation

2. Separate emergency call and concierge button

3. Support for RFID 125 kHz and 13.56 MHz

4. Ability to replace the video module without removing or disassembling the doorphone

5. SIPv2 protocol support

6. 8500 RFID keys

7. Opening the door according to the individual code of the subscriber

8. Registration of an RFID key for an individual user code

Technical specification:

Lens 2 mm, F2.0
Viewing Angle 137 ° (horizontal), 103 ° (vertical)
Increase Digital, through the web interface
WDR Digital, 3 presets
Noise suppression 2D / 3DNR (level adjustment), SmartNR
Shutter Speed From 1/25 to 1/8000 sec. (automatically, setting the maximum value)
Signal / Noise Not less than 50 dB
Synchronization Synchronization with light source 50, 60 Hz
Video Stream Double coding: H.264 / MJPEG, H.264 / H.264, MJPEG / MJPEG
Resolution Main stream: 1280x960 (SXGA), 1280x720 (HD)
Frame Rate Up to 25 fps for all resolutions
Transmission speed From 32 kbps to 16 Mbps, CBR, VBR
Audio
Audio output Built-in speaker
Audio Input Built-in microphone
Compression G.711 (a-law, u-law), G.726
Backlight
LEDs IR LED of the 3rd generation (2 pcs.)
Operating mode By the sensor, on the video signal, constantly
Wavelength 850 nm
Range Up to 10 m
Network and Interfaces
Network Protocols TCP / IP, SIP v.2.0, VPN, HTTP, HTTPS, FTP, SMTP, DDNS, DHCP, PPPoE,RTP, RTSP, UPnP, UDP, NTP, ONVIF v.2.41, Modbus TCP
Compound DHCP, static address
Members List Up to 3 accounts
Number of doors 2 pcs.
Number of door open sensors 2 pcs.
Relay add. lighting 1 PC.
Analog video output PAL / NTSC 720H

Intelligent RFID Wifi Entry System Doorking Video Intercom In Apartment

Intelligent RFID Wifi Entry System Doorking Video Intercom In Apartment

Intelligent RFID Wifi Entry System Doorking Video Intercom In Apartment

Intelligent RFID Wifi Entry System Doorking Video Intercom In Apartment


FAQ:

Q: Do you sell at retail?

A: Sorry,we are factory and it’s need technical person to install it,so we are not sell to personal user directly,thanks.

Q: Are you trading company or manufacturer?

A: We are manufacturer and provide factory price directly.

Q: Do you provide SDK/API for secondary development?

A: Of course,customized service is our advantage.We could provide SDK/HTTP/MQTT(integrate cloud) for integration.included firmware customization.

Q: What's the MOQ of product?

A: 1PC for the sample order;After tested sample order,the MOQ is 10pcs/Model.

Q: What are your terms of payment?

A: We accept Paypal,Western Union and TT before production.

Q: Could you provide OEM/ODM for customers?

A: Sure,we provide full OEM&ODM service,Like Logo printed,carton box design ect.Our engineer could design the OSD menu as request.If for more questions,welcome to contact us for further discussion,thanks.

Q: What's the delivery time?

A: Sample order about 2-7 working days;Normal order about 6-12 working days;Bulk order can about 10-25 working days.It's depend on the quantities.

Q: What's the warranty and support?

A: All the goods be checked before dispatch.We provide 2 years warranty after the shipment date.

We have professional technical support team to support our customers,and if you have any question for the technology of our products,please email or chat with us by skype,thank you in advance.
